Plahvatusohutu elektrikalorifeer kandilisele kanalile

Plahvatusohutu elektrikalorifeer kandilisele kanalile

Plahvatusohutu elektrikalorifeer

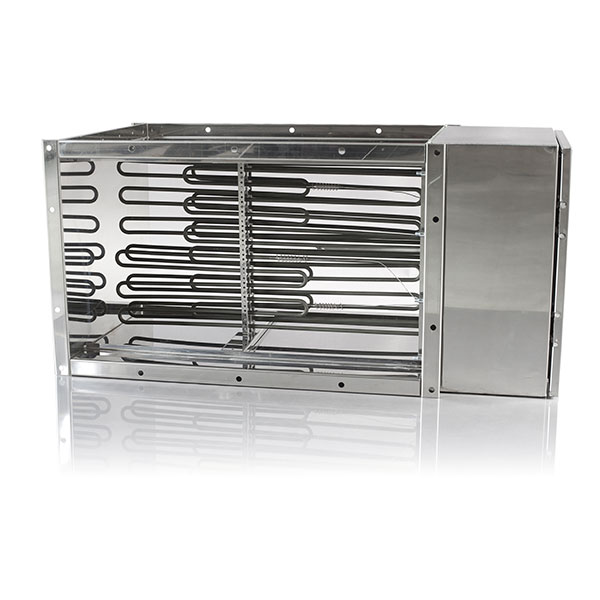

VEAB´s rectangular ATEX-approved duct heaters are available in ratings up to 400 kW and are used for heating air in duct systems, central ventilation units and for various industrial processes in environments in which there occasionally occur danger of explosion (Zone 1 and Zone 2). Our flexible production enables us to adapt the duct heater to different sectors of application such as offshore, chemical industry and ships.

  • Power ratings from 1 kW to 400 kW
  • Temperature class T3 (max 200°C)
  • For use in areas in which the dangers of explosion are due to gases or fumes (equipment category 2G)
  • Degree of protection IP64
  • Max. outlet temperature 40°C
  • Max ambient air temperature is 40°C
  • Minimum air velocity 2.5 m/s
  • Can be installed horizontally or vertically
  • Built-in overheating protection and temperature limiter
  • VFL-EX has heating elements mounted in a removable casette

Dokumendid
Siit leiate tootelehed, juhendid ja muud materjalid, mis on seotud valitud tootega.
Hinnapakkumise saamiseks palun võtke meiega ühendust.

Tootega seotud pildid
